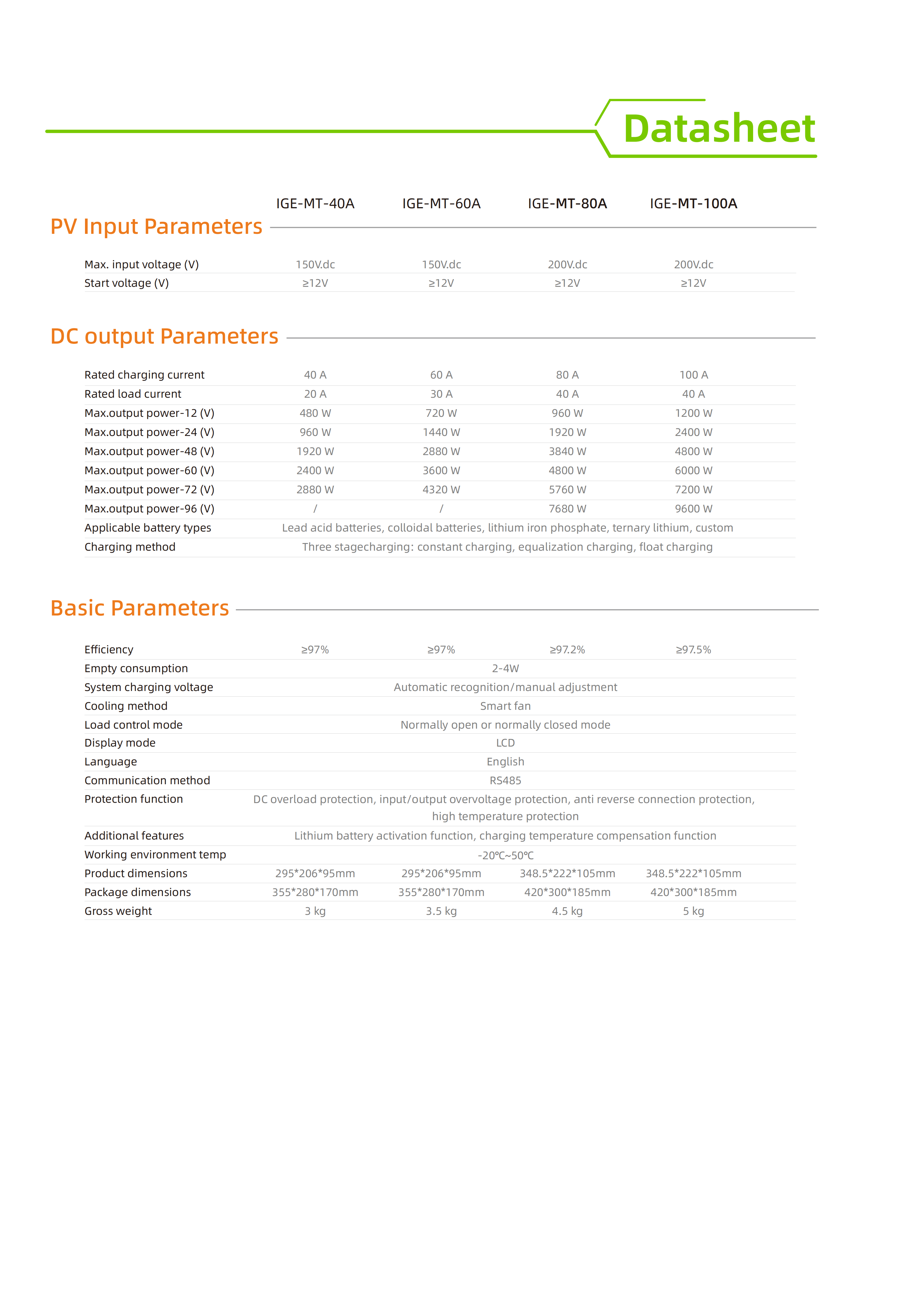

Specifications
IGE-MT40~100A MPPT controller
IGE-MT40-100A MPPT Controller class
◆ Combining multiple tracking algorithms can quickly and accurately track the I-V curve
◆ Incorporating a maximum power point tracking algorithm can significantly enhance the energy utilization efficiency of photovoltaic systems, achieving an MPPT tracking efficiency of up to 99.9%. The maximum conversion efficiency can reach up to 98.5%.
◆ Supports charging programs for different types of batteries, including lead-acid batteries, gel batteries, lithium iron phosphate batteries, ternary lithium batteries, and user-defined batteries.
◆ Incorporating a maximum power point tracking algorithm can significantly enhance the energy utilization efficiency of photovoltaic systems, achieving an MPPT tracking efficiency of up to 99.9%. The maximum conversion efficiency can reach up to 98.5%.
◆ Supports charging programs for different types of batteries, including lead-acid batteries, gel batteries, lithium iron phosphate batteries, ternary lithium batteries, and user-defined batteries.
Introduction
The IGE-MT40-100AMPPT controller is capable of charging lead-acid and lithium batteries, and can also support DC loads with corresponding voltages, achieving a maximum MPPT efficiency of up to 99.9%.
Highlights
compact design
remote communication
LCD display
Auto Run
Introduction
